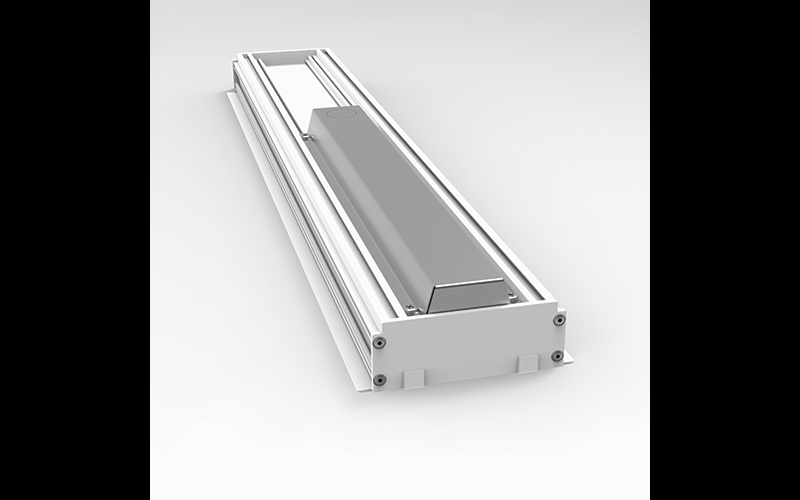

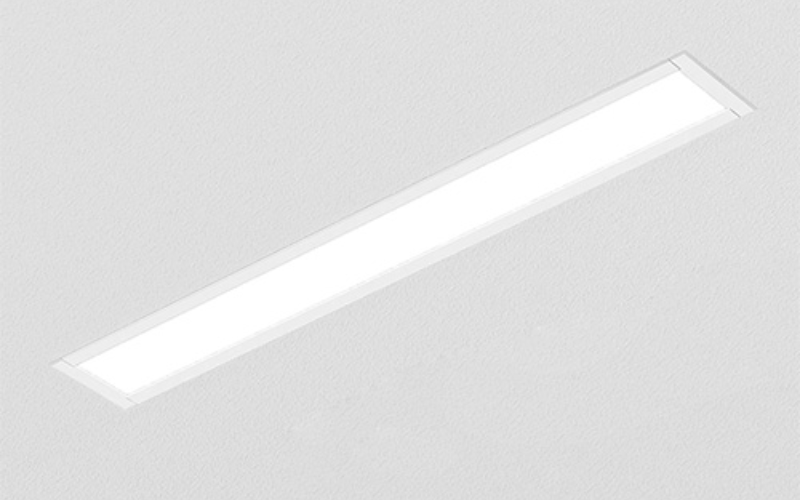

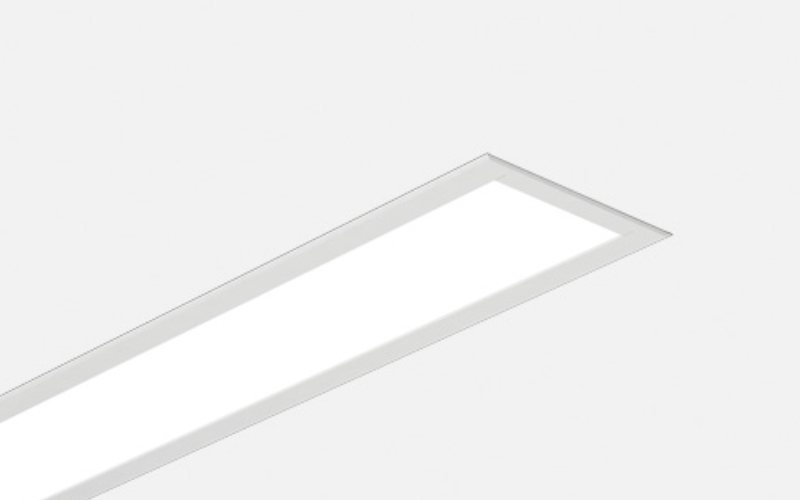

ESL3-R. EDGESlot3 Recessed 3'' Edge-Lit Linear LED T-Bar Ceiling & Drywall Mount.
Configure
Add to project




RESOURCES
DESCRIPTION
EDGESlot3 is an innovative low-profile 3″ wide LED luminaire designed to be used in applications requiring recessed drywall or gypsum mounting. It is also available for mounting into T-Bar ceiling installs and is especially suited to low or zero plenum. EDGESlot3 provides best-in-class efficiency and beam control options. EDGESlot3 incorporates an engineered LED light engine with fully customizable choices for lumen output, CCT and CRI.
- Edge-lit light guide technology with choice of optics
- Fusion Optix® Inside with SmartBeam® technology
- Patented EDGETek® light guide innovations
- Additional MICROTek® and FLATLens® Optics
- Symmetric & asymmetric lighting distributions
- Best-in-class efficiency and color quality
- 0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
- Choice of factory selected, Lutron or Eldoled drivers
- Controls include; Lutron, Cooper, Casambi
- Choice of finishes and customization options
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.6"L: 2'4'6'8'Run length (inch)
- Light SourceLED
- CCT/Color2700K2700K Dim to Warm3000K3500K4000KTunable White
- CRI90 95
- Watt(Approx)custom
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkWireless DimmingIntegral Sensor
- Power/VoltageIntegralRemoteUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULRoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-Grid CeilingSlot T-Grid Ceiling
- HousingIC
- Housing Depth2 ''
