XICO
ESM375-S. EDGESlim375 Surface Direct | Standard Lengths.
Configure
Add to project
RESOURCES
DESCRIPTION

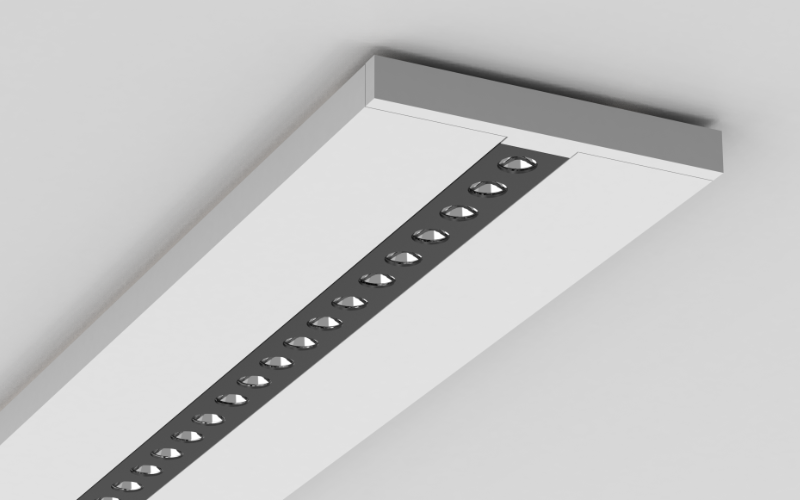

The EDGESlim375 Surface from XICO is an innovative ultra-slim and compact surface-mounted LED linear product providing best-in-class efficiency and beam control options. The EDGESlim375 is designed to be specification-grade with high lumen per foot, high CRI, and circadian options. EDGESlim375 does not rely on low-cost LED tape but rather engineered light engines with fully customizable choices for lumen output, CCT, and CRI. Based upon unique micro-optical technology; a key feature of the EDGESlim375 is that it delivers a wide range of beam distributions while achieving high efficacy, energy-saving performance. EDGESlim375 products are available with a range of accessories and mounting options.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3.75”L: 1 Ft2 Ft4 Ft6 Ft8 FtRun length (Ft)H: 0.5"
- Light SourceLED
- CCT/Color2700K3000K3500K3500K Dim to Warm4000KTunable WhiteField Select CCT
- CRI80 90 95
- Watt(Approx)2.4 W/Ft3.4 W/Ft5.1 W/Ft6.8 W/Ftcustomswitchable
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustomswitchable
- OpticsDirectWide FloodGeneral DiffusedAsymmetric/WashBatwingRemote Adjustable
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
- Controls/NetworkLutron®nLight®Wireless DimmingCasambiIntegral Sensor
- Power/VoltageRemoteUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULRoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeESM375-S
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
