XICO

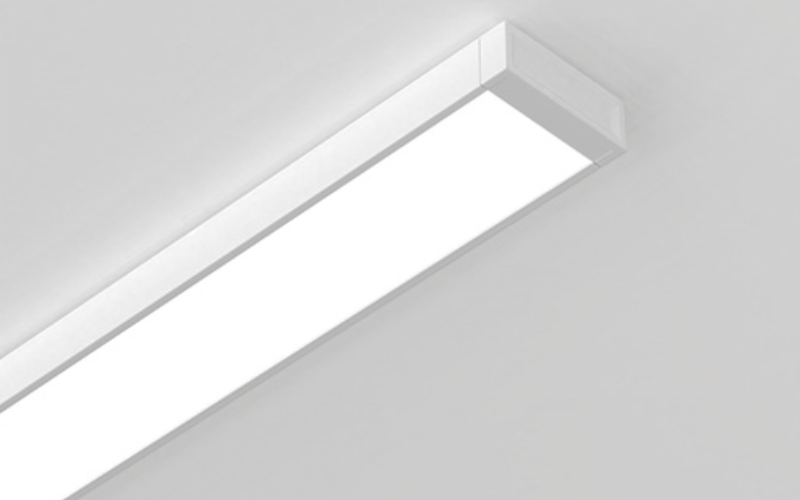

ESO325-S. EDGESolo325 Surface 3.25'' Edge-Lit Linear LED.
 Configure
 Add to project
XICO. ESO325-S. EDGESolo325 Surface 3.25'' Edge-Lit Linear LED Surface Mount.
XICO. ESO325-S. EDGESolo325 Surface 3.25'' Edge-Lit Linear LED Surface Mount.
XICO. ESO325-S. EDGESolo325 Surface 3.25'' Edge-Lit Linear LED Surface Mount.
XICO. ESO325-S. EDGESolo325 Surface 3.25'' Edge-Lit Linear LED Surface Mount.
RESOURCES
DESCRIPTION
EDGESolo325 Surface is an innovative low-profile surface-mounted LED luminaire designed to provide the perfect direct and indirect light. EDGE products all provide best-in-class efficiency and beam control options. EDGESolo325 Surface is specification-grade with high lumen per foot, high CRI, and circadian options. EDGESolo325 Surface incorporates an engineered LED light engine with fully customizable choices for lumen output, CCT, and CRI.
  • Edge-lit light guide technology with choice of optics
  • Fusion Optix® Inside with SmartBeam® technology
  • Patented EDGETek® light guide innovations
  • Additional MICROTek® and FLATLens® Optics
  • Symmetric & asymmetric lighting distributions
  • Best-in-class efficiency and color quality
  • 0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
  • Choice of factory selected, Lutron or Eldoled drivers
  • Controls include; Lutron, Cooper, Casambi
  • Choice of finishes and customization options
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 3.25"
    L: 2'4'6'8'Run length (inch)
    H: 0.98"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80 90 95
  • Watt(Approx)
    custom
  • Lumens(Approx)
    350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
  • Optics
    DirectGeneral DiffusedAsymmetric/WashBatwing
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
  • Controls/Network
    Wireless DimmingIntegral Sensor
  • Power/Voltage
    RemoteUNV 120-277V347V
  • Integral Emergency
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULRoHSDeclareBAA
  • Environment
    Damp
  • Mounting Type
    Ceiling Surface
  • Housing
  • Housing Depth
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
