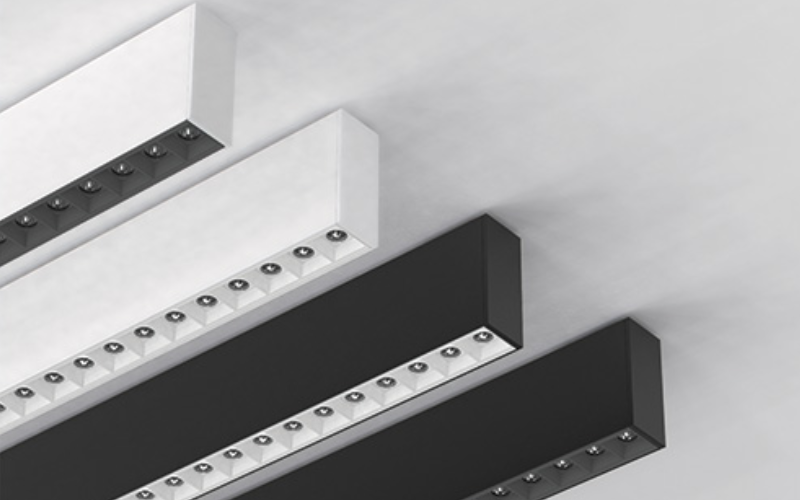

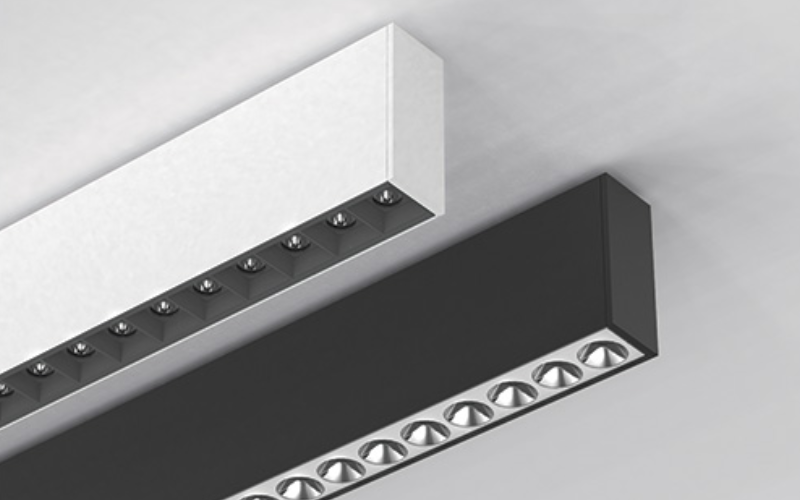

MBE140MCO-S. MICROBeam MCO Surface 1.4'' Low-Profile Linear LED.
Configure
Add to project
RESOURCES
DESCRIPTION
MICROBeam MCO Surface is a 1.4” linear for surface mounting, typically to a drywall ceiling. MICROBeam MCO Surface includes an integral, field serviceable, on-board driver. MICROBeam MCO Surface brings SmartBeam® capabilities up to a powerful 2000 lumens per foot combined direct and indirect. It’s small size designed to compliment architectural space. MICROBeam MCO Surface is fully field serviceable and can be supplied in continuous runs and a variety of visually appealing shapes.
- High performance, small form factor LED light
- SmartBeam® technology by Fusion Optix®
- Symmetric & asymmetric lighting distributions
- Best-in-class efficiency for indirect and direct lighting
- LED choices: >90 CRI, Sunlight and RGB/RGBW
- White LED color fidelity of 2.5 Step MacAdam ellipse
- 0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
- Choice of factory selected, Lutron or Eldoled drivers
- Controls include; Lutron, Cooper, Casambi
- Choice of powder coated and anodized finishes
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.4"L: 2'4'6'8'10'Run length (inch)H: 2.95"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000K
- CRI80 90 95
- Watt(Approx)9 W/Ftcustom
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectMediumFlood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)eldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®Casambi
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULRoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
