MBE140MCO-W. MICROBeam MCO Wall 1.4'' Low-Profile Linear LED.
Configure
Add to project
RESOURCES
DESCRIPTION

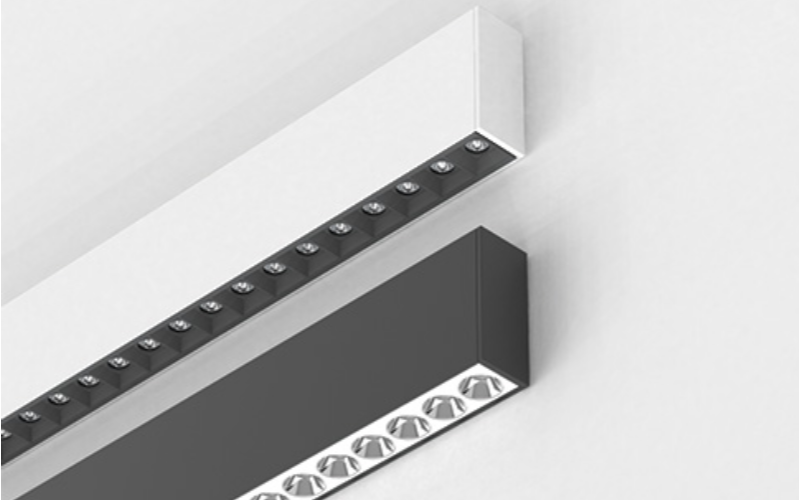

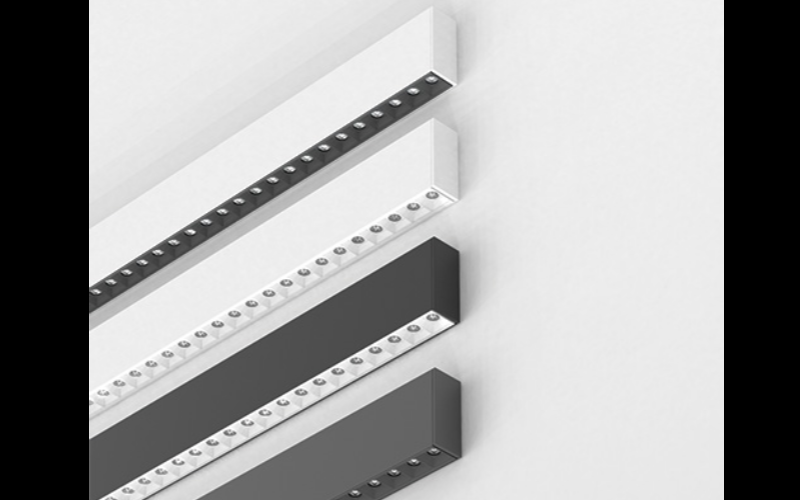

MICROBeam MCO Wall is a 1.4” linear for surface mounting, typically to a wall ceiling. MICROBeam MCO Wall includes an integral, field serviceable, on-board driver. MICROBeam MCO Wall brings SmartBeam® capabilities up to a powerful 2000 lumens per foot combined direct and indirect. It’s small size designed to compliment architectural space. MICROBeam MCO Wall is fully field serviceable and can be supplied in continuous runs and a variety of visually appealing shapes.
- High performance, small form factor LED light
- SmartBeam® technology by Fusion Optix®
- Symmetric & asymmetric lighting distributions
- Best-in-class efficiency for indirect and direct lighting
- LED choices: >90 CRI, Sunlight and RGB/RGBW
- White LED color fidelity of 2.5 Step MacAdam ellipse
- 0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
- Choice of factory selected, Lutron or Eldoled drivers
- Controls include; Lutron, Cooper, Casambi
- Choice of powder coated and anodized finishes
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.4"L: 2'4'6'8'10'Run length (inch)H: 2.95"
- Light SourceLED
- CCT/Color2700K3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000K
- CRI80 90 95
- Watt(Approx)7 W/Ft9 W/Ftcustom
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectDirect/IndirectMediumFloodGeneral DiffusedAsymmetric/WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)eldoLED ECO 0-10VeldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®Casambi
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULRoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeWall Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
