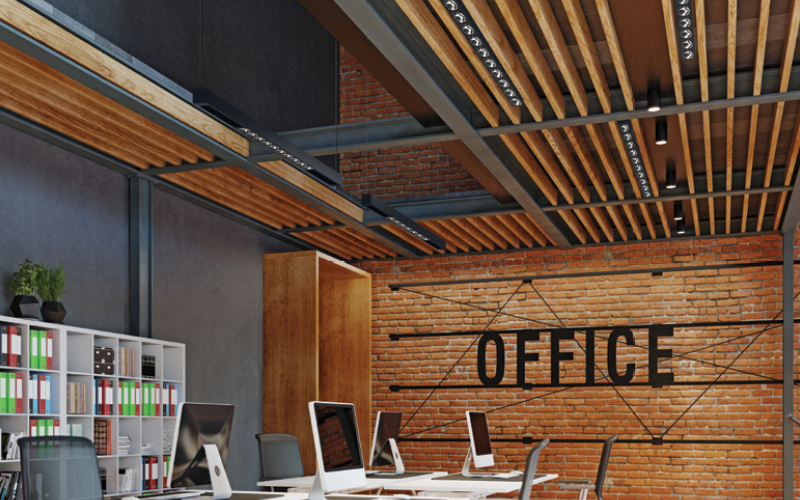

MDA-MCO. MICRODash MCO Woodworks Micro-Aperture Downlight for Wood Ceiling Grids
Configure
Add to project
RESOURCES
DESCRIPTION
MICRODash MCO Recessed is a 1.4” linear for mounting on to Armstrong Woodworks® ceiling grid or equivalent. MICRODash MCO Recessed can be supplied with either a remote or integral, field serviceable, on-board driver. MICRODash MCO Recessed brings SmartBeam® capabilities up to a powerful 2000 lumens per foot combined direct and indirect. It’s small size designed to compliment architectural space. MICRODash MCO Recessed is fully field serviceable and can be supplied in continuous runs and a variety of visually appealing shapes.
- High performance, small form factor LED light
- SmartBeam® technology by Fusion Optix®
- Symmetric & asymmetric lighting distributions
- Best-in-class efficiency for indirect and direct lighting
- LED choices: >90 CRI, Sunlight and RGB/RGBW
- White LED color fidelity of 2.5 Step MacAdam ellipse
- 0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
- Choice of factory selected, Lutron or Eldoled drivers
- Controls include; Lutron, Cooper, Casambi
- Choice of powder coated and anodized finishes
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 1.5"L: 6.75"13.5"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000K
- CRI80 90 95
- Watt(Approx)custom
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
- OpticsDirectMediumFloodWide Flood
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)EldoLED 0-10V/DALIDMX
- Controls/NetworkLutron®Casambi
- Power/VoltageIntegralUNV 120-277V347V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesUL/CULMade in USARoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling RecessedDrywallT-BarWood
- HousingIC
- Housing Depth1.5 ''
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timeMDA-MCO-1
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
