MSL-RD. MICROSlot Recessed 1.5” Low-Profile Linear LED Drywall Mount.
 Configure
 Add to project

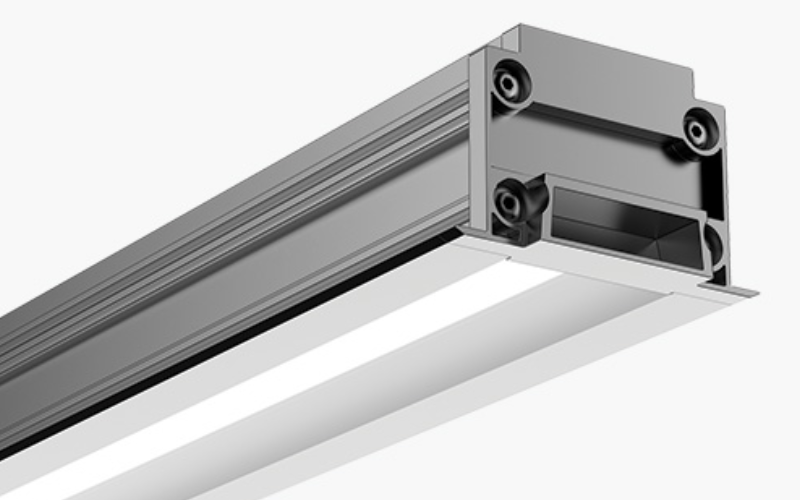

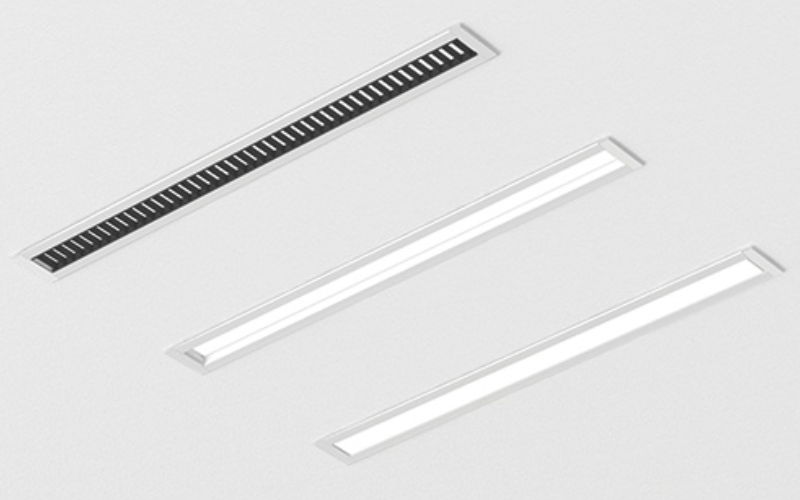

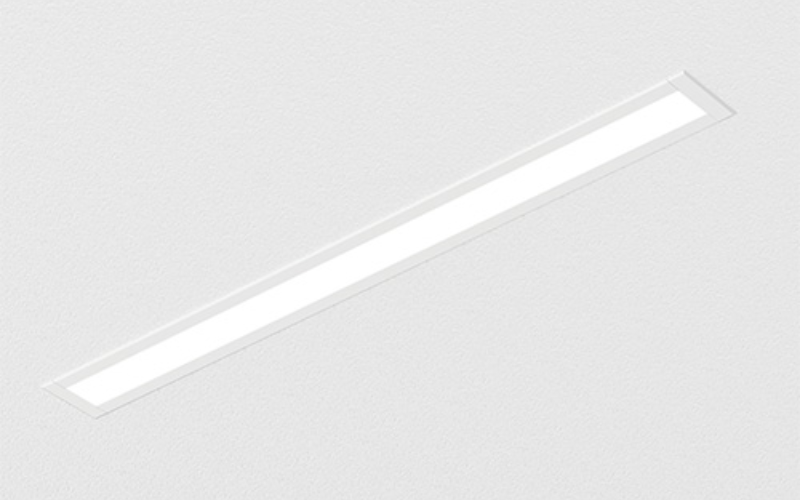

XICO. MSL-RD. MICROSlot Drywall 1.5” Low-Profile Linear LED Drywall Mount.
XICO. MSL-RD. MICROSlot Drywall 1.5” Low-Profile Linear LED Drywall Mount.
XICO. MSL-RD. MICROSlot Drywall 1.5” Low-Profile Linear LED Drywall Mount.
XICO. MSL-RD. MICROSlot Drywall 1.5” Low-Profile Linear LED Drywall Mount.
RESOURCES
DESCRIPTION
MICROSquare Recessed takes the same capabilities and SmartBeam® controlled distributions of MICROSquare and adapts to recessed applications. MICROSquare Recessed has drywall and custom configuration mounting options for ceiling systems. The MICROSquare Recessed range is designed to be specification-grade with high lumen per foot, high CRI, and circadian options.

  • Designed and built in Boston MA
  • Wide range of lighting distributions
  • Best-in-class efficiency
  • 0-10V, DALI, DMX and Triac dimming. Dim-to-Warm
  • Choice of factory selected, Lutron or Eldoled drivers
  • Controls include; Lutron, Cooper, Casambi
  • Choice of finishes and customization options
  • Declare listed and Red List Free
  • Fusion Optix® inside with SmartBeam® technology
  • 5-Year Factory Warranty
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 2.44"
    L: 2'4'6'8'10'Run length (inch)
  • Light Source
    LED
  • CCT/Color
    2700K3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000K
  • CRI
    80 90 95
  • Watt(Approx)
    4.8 W/Ft
  • Lumens(Approx)
    350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft
  • Optics
    DirectFloodWide FloodGeneral DiffusedAsymmetric/WashBatwing
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)eldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VDMX
  • Controls/Network
    Lutron®Casambi
  • Power/Voltage
    IntegralRemoteUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    UL/CULRoHSDeclareBAA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedDrywall
  • Housing
    IC
  • Housing Depth
    1.5 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
