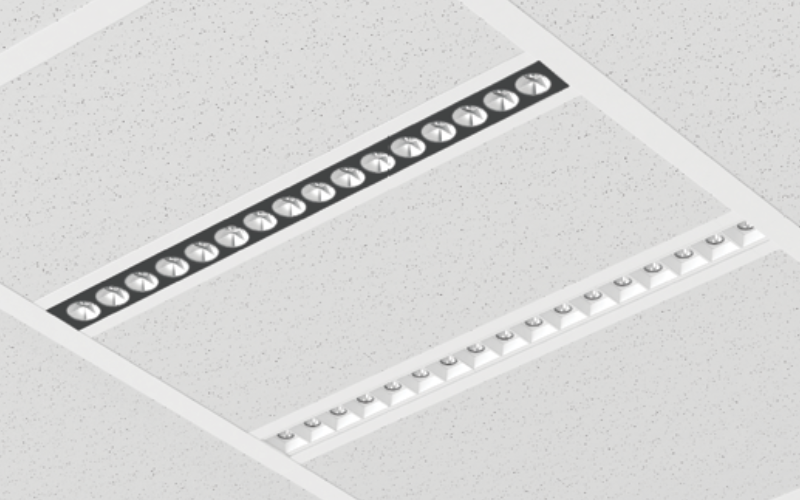

MSLMCO-RT. MICROSlot MCO T-Bar 1.5'' Low-Profile Linear LED T-Bar Mount.
 Configure
 Add to project
XICO. MSLMCO-RT. MICROSlot MCO T-Bar 1.5'' Low-Profile Linear LED T-Bar Mount.
XICO. MSLMCO-RT. MICROSlot MCO T-Bar 1.5'' Low-Profile Linear LED T-Bar Mount.
XICO. MSLMCO-RT. MICROSlot MCO T-Bar 1.5'' Low-Profile Linear LED T-Bar Mount.
RESOURCES
DESCRIPTION
MICROSlot MCO T-Bar takes the same capabilities and SmartBeam® controlled distributions and adapts to recessed applications. MICROSlot MCO T-Bar has mounting options for ceiling systems, drywall, millwork, metal, and custom configurations. The MICROSlot MCO T-Bar range is designed to be specification-grade with high lumen per foot, high CRI, and circadian options.
  • Fusion Optix® inside with SmartBeam® technology
  • Declare listed and Red List Free materials
  • 80/90/95+ CRI, 2200K-4000K CCT
  • Static white, tunable white and dim-to-warm
  • Available with BIOS and Sunlight LEDs
  • 0-10V, DALI and DMX Dimming down to 0.1%
  • Lutron and eldoLED drivers available
  • UL listed, CSA 22.2 compliant
  • RoHS compliance and lead free
  • 5 Year, 50,000 hour standard warranty
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 1.5"
    L: 2 Ft4 Ft6 Ft8 Ft10 Ft
  • Light Source
    LED
  • CCT/Color
    2400K or less2700K3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000K
  • CRI
    80 90 95
  • Watt(Approx)
    9 W/Ftcustom
  • Lumens(Approx)
    350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
  • Optics
    DirectMediumFloodWide Flood
  • Adjustable
  • Dimming
    Dim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)EldoLED 0-10V/DALIDMX
  • Controls/Network
    Lutron®Casambi
  • Power/Voltage
    RemoteUNV 120-277V347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    ETLMade in USARoHSDeclareBAA
  • Environment
    Damp
  • Mounting Type
    Ceiling RecessedT-Grid CeilingSlot T-Grid Ceiling
  • Housing
    IC
  • Housing Depth
    1.5 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
