MSQ. MICROSquare Surface 1.4” Square Linear Direct.

Configure

Add to project

RESOURCES

DESCRIPTION

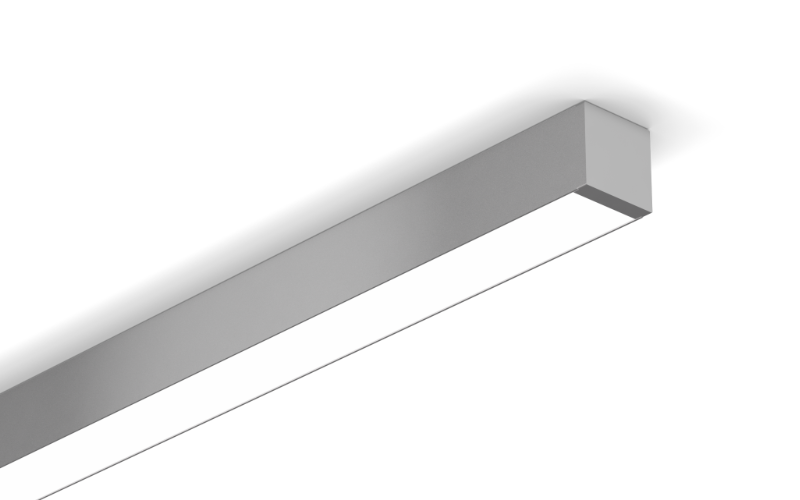

MICROSquare 1.4 offers a compact 1.4″ (35mm) wide low profile surface mounted linear LED fixture with remote driver and direct light distributions, lumen outputs, color temperature & Human Centric Lighting options.

Square profile: 1.4” (35mm) x 1.4” (35mm)

Fusion Optix® inside with SmartBeam® technology
Declare listed and Red List Free materials
80/90/95+ CRI, 2200K-4000K CCT
Static white, tunable white and dim-to-warm
Available with BIOS and Sunlight LEDs
0-10V, DALI and DMX Dimming down to 0.1%
Lutron and eldoLED drivers available
UL listed, CSA 22.2 compliant
RoHS compliance and lead free
5 Year, 50,000 hour standard warranty

MORE DESCRIPTION

SPECIFICATIONS

Dimensions
W: 1.4"
L: 24"48"72"96"120"Run length (inch)
H: 1.4"
Light Source
LED
CCT/Color
2700K3000K3000K Dim to Warm3500K4000K5000KTunable White
CRI
80 90 95
Watt^(Approx)
6.2 W/Ftcustom
Lumens^(Approx)
350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ftcustom
Optics
DirectFloodWide FloodGeneral DiffusedAsymmetric/WashDouble WashBatwing
Adjustable

Dimming
Dim to 3-10%Dim to 1%Dim to <1%Non-Dim0-10VDALILutron Hi-lume EcoSystem (LDE1)DMX
Controls/Network
Wireless DimmingIntegral Sensor
Power/Voltage
RemoteUNV 120-277V347V
Integral Emergency
Lumen Maintenance
50000 h
Certificates
UL/CULRoHSDeclareBAA
Environment
Damp
Mounting Type
Ceiling Surface
Housing
Housing Depth

SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
