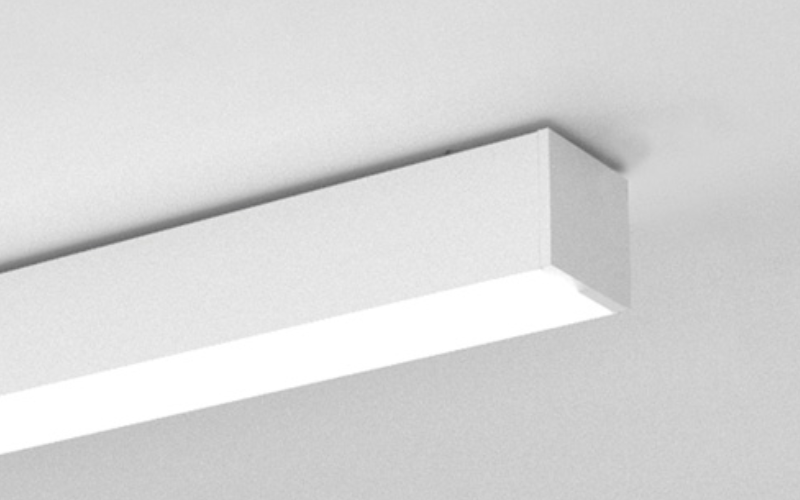

PSQ3-S. PROSquare3 Surface 3” High-Performance Linear Direct.
Configure
Add to project
RESOURCES
DESCRIPTION
PROSquare3 brings SmartBeam® capabilities to a 3” form factor with an integral driver providing best-in-class efficiency and beam control options. The PROSquare3 Pendant is designed to be specification grade with a wide range of beam options, high CRI, and circadian options. The 3″ aperture delivers comfortable illumination in a wide range of beam distributions while achieving high efficacy, and energy-saving performance. PROSquare3 offers a range of accessories, mounts, and skins that provide an easy route to customization and performance enhancements.
Beam profile: 3” (76.2mm) x 3” (76.2mm)
Beam profile: 3” (76.2mm) x 3” (76.2mm)
- Fusion Optix® inside with SmartBeam® technology
- Declare listed and Red List Free materials
- 80/90/95+ CRI, 2200K-4000K CCT
- Static white, tunable white and dim-to-warm
- Available with BIOS and Sunlight LEDs
- 0-10V, DALI and DMX Dimming down to 0.1%
- Lutron and eldoLED drivers available
- UL listed, CSA 22.2 compliant
- RoHS compliance and lead free
- 5 Year, 50,000 hour standard warranty
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3"L: 2'4'6'8'10'Run length (inch)H: 3"
- Light SourceLED
- CCT/Color2400K or less2700K3000K3000K Dim to Warm3500K3500K Dim to Warm4000K5000K
- CRI80 90 95
- Watt(Approx)5.51 W/Ftcustom
- Lumens(Approx)350 Lm/Ft500 Lm/Ft750 Lm/Ft1000 Lm/Ft1250 Lm/Ft1500 Lm/Ftcustom
- OpticsDirectFloodGeneral DiffusedAsymmetric/WashDouble WashBatwing
- Adjustable
- DimmingDim to 3-10%Dim to 1%Dim to <1%Non-DimTRIAC/Forward/Leading0-10VDALILutron Hi-lume EcoSystem (LDE1)Lutron EcoSystem 5 (LDE5)eldoLED ECO 0-10VeldoLED SOLO DALIeldoLED SOLO 0-10VDMX
- Controls/NetworkLutron®Casambi
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance50000 h
- CertificatesUL/CULRoHSDeclareBAA
- EnvironmentDamp
- Mounting TypeCeiling Surface
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
Lead timePSQ3-S
Cost
—
CONFIGURATORDESCRIPTIONDIMENSIONSLIGHT SOURCEWATT/LUMENSPOWER/CONTROLSYou reconfigured the product. To remove this message please update you custom description.Marks unavailable product configuration, refer to manufacturer’s documentation for details
BUILD CATALOG NUMBER
