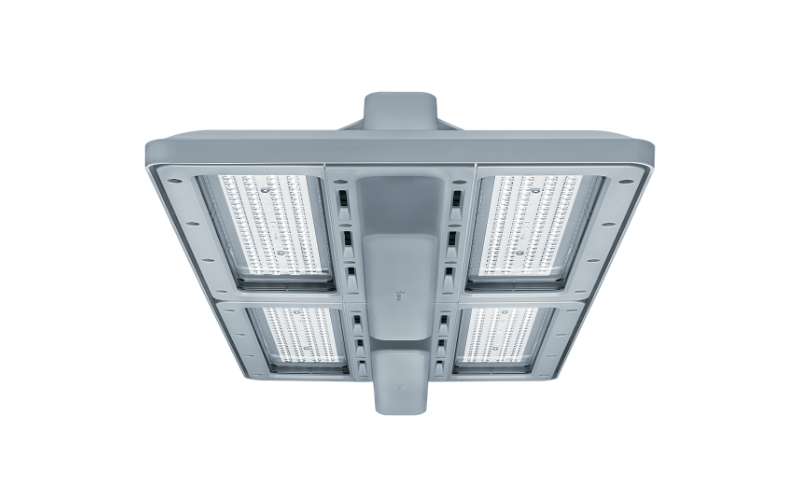

CR2. CRAFT II PLUS LARGE HIGH BAY PENDANT AND SURFACE LUMINAIRE.
Configure
Add to project
RESOURCES
DESCRIPTION
Die cast aluminium housing, impact- and corrosion-resistant aluminium housing with copper content reduced by 80 %, powder-coated for special surface strength and maximum protection in challenging environments
Water protection class IP66
Finishes in white, black, or silver
A choice of sensors: microwave, EnOcean, Casambi
Single mold housing, sensitive components like sensors, emergency or IoT technology are completely covered.
Uses two fundamental principles of physics, the Venturi effect and the Coandă effect , to cool and clean itself.
Three beam spreads, very wide beam, wide beam, and narrow.
Water protection class IP66
Finishes in white, black, or silver
A choice of sensors: microwave, EnOcean, Casambi
Single mold housing, sensitive components like sensors, emergency or IoT technology are completely covered.
Uses two fundamental principles of physics, the Venturi effect and the Coandă effect , to cool and clean itself.
Three beam spreads, very wide beam, wide beam, and narrow.
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 16.3"L: 40.35"H: 6.14"
- Light SourceLED
- CCT/Color3000K4000K5000K6000K
- CRI80
- Watt(Approx)129 W166 W232 W349 W
- Lumens(Approx)20000 Lm27000 Lm35000 Lm50000 Lm
- OpticsDirectWide Flood
- Adjustable
- DimmingDim to 3-10%0-10VDALILutron Hi-lume EcoSystem (LDE1)
- Controls/NetworkCasambiIntegral Sensor
- Power/VoltageIntegralUNV 120-277V347V
- Integral EmergencyEM Integral
- Lumen Maintenance100000 h
- CertificatesUL/CUL
- EnvironmentIP66
- Mounting TypePendantCeiling SurfaceWall SurfaceBrackets
- Housing
- Housing Depth
SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
-
