Zumtobel

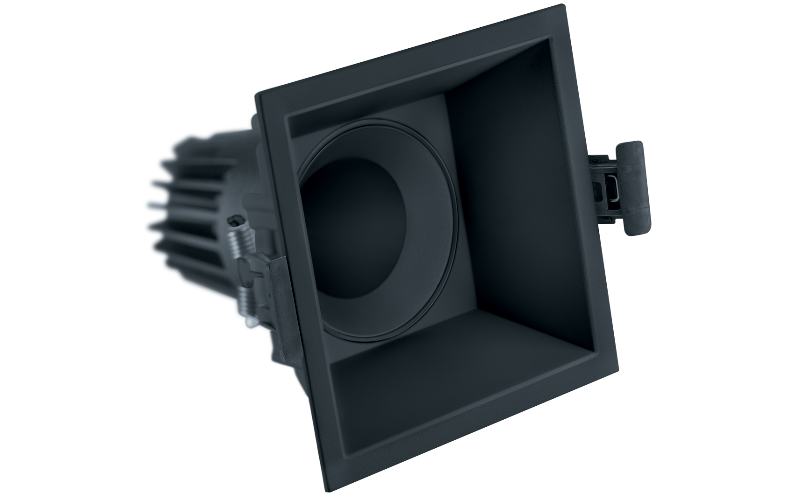

DIAMOMD. DIAMO MD 4.5'' Deep Source Downlight.
 Configure
 Add to project
Zumtobel.
Zumtobel.
RESOURCES
DESCRIPTION
Multifunctional luminaire unit fixed and rigid for increased visual comfort in combination with DIAMO Deep Source installation frame/ring

Three distributions: Spot 15°, Flood 30°, or Wide Flood 47°

90 CRI with CCTs of 3000K, 3500K, or 4000K

Mounted in DIAMO Deep Source installation frame/ring; ordered separately

Decorative reflector edge can be personalised in white or black

Housing made of die-cast aluminium with innovative thermal design for passive cooling Round or square trim available

Wireless, 0-10V, DALI and Lutron controls

Chicago Plenum rated

Simple tool-free mounting of modules into the installation frames (Gimbal / Deep Source)
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 4.4"
    L: 4.4"
  • Light Source
    LED
  • CCT/Color
    3000K3500K4000K
  • CRI
    90
  • Watt(Approx)
    11 W18 W
  • Lumens(Approx)
    840 Lm1400 Lm
  • Optics
    DirectNarrowFloodWide Flood
  • Adjustable
    Adjustable
  • Dimming
    Dim to 1%Dim to <1%0-10VDALILutron Hi-lume EcoSystem (LDE1)
  • Controls/Network
    Wireless Dimming
  • Power/Voltage
    Integral347V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAIBEWBAA
  • Environment
  • Mounting Type
    Ceiling RecessedDrywall
  • Housing
    ICChicago Plenum
  • Housing Depth
    2.7 ''3.5 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
