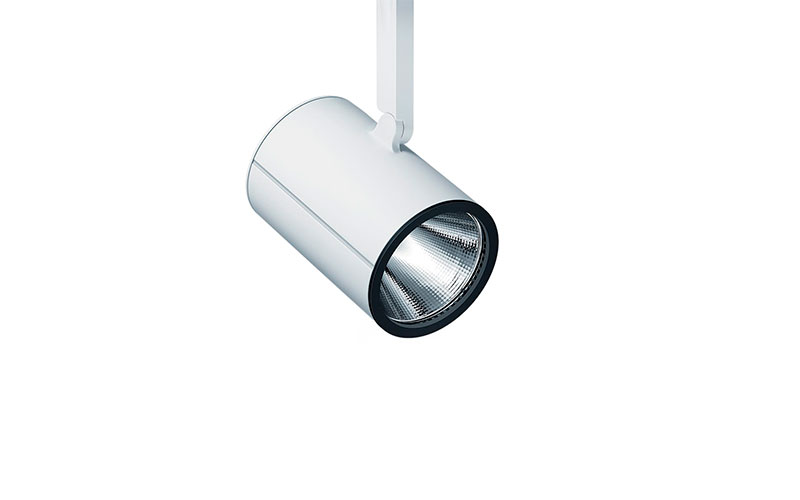

ONICM. ONICO Medium Trackhead for Global Trac.
Configure
Add to project
RESOURCES
DESCRIPTION
Compatible with GLOBAL trac TEK and HTEK systems
Driver integrated into the housing
Rotatable head through 328° and tiltable through 90°
Black polycarbonate front ring provides excellent glare control
Optional interchangeable reflectors available in Spot, Flood and Wide Flood distributions offered as accessories
3000 K, 3500 K, or 4000 K with 3-step MacAdam Ellipse
50,000 hours rate life, L80
Passive cooling achieved by innovative thermal design
Housing is made of die-cast aluminum, painted white
Spot, Flood or Wide Flood beam spread
Front ring serves for accommodation of accessories
Reflector of aluminized polycarbonate, highly specular, iridescence-free
CRI 80+ or CRI 90+
Available with 0-10V dimming standard driver
Weight – 2.0 lbs
Driver integrated into the housing
Rotatable head through 328° and tiltable through 90°
Black polycarbonate front ring provides excellent glare control
Optional interchangeable reflectors available in Spot, Flood and Wide Flood distributions offered as accessories
3000 K, 3500 K, or 4000 K with 3-step MacAdam Ellipse
50,000 hours rate life, L80
Passive cooling achieved by innovative thermal design
Housing is made of die-cast aluminum, painted white
Spot, Flood or Wide Flood beam spread
Front ring serves for accommodation of accessories
Reflector of aluminized polycarbonate, highly specular, iridescence-free
CRI 80+ or CRI 90+
Available with 0-10V dimming standard driver
Weight – 2.0 lbs
MORE DESCRIPTION
SPECIFICATIONS
- DimensionsW: 3 3/4"L: 3 3/4"H: 7"
- Light SourceLED
- CCT/Color3000K3500K4000K
- CRI80 90
- Watt(Approx)24 W
- Lumens(Approx)1800 Lm
- OpticsDirectNarrowFloodWide Flood
- AdjustableAdjustable
- Dimming
- Controls/Network
- Power/VoltageIntegralUNV 120-277V
- Integral Emergency
- Lumen Maintenance50000 h
- CertificatesCSA
- Environment
- Mounting TypeTrack/Busway
- Housing
- Housing Depth
