Zumtobel

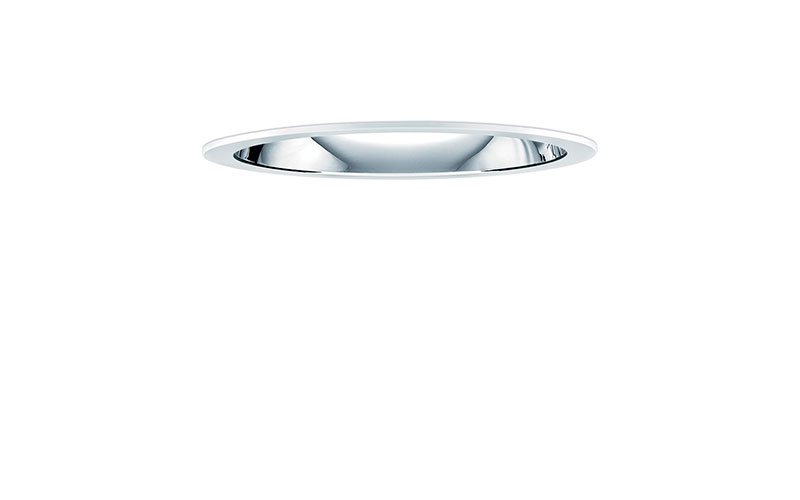

PANOS. PANOS 7.25'' Round High Output Downlight.
 Configure
 Add to project
RESOURCES
DESCRIPTION
High-quality, high-output illumination using an advanced optical system

Simple twist-and-lock mechanism for quick tool-free fitting of luminaire unit

Flood 31° beam angle

Reflector finishes include Clear Specular, Faceted Specular, Matte Silver and White

CRI 80+ and CRI 90+

Wet location accessory available

Easy to install with extra hanger bar support – installs 50% faster compared to traditional downlights

Trim and reflector made of UV-resistant polycarbonate

Spot 13° beam angle

White trim

50,000 hours rated life, L80

Weight – 6.5 lbs
MORE DESCRIPTION
SPECIFICATIONS
  • Dimensions
    W: 8.5"
    L: 8.5"
  • Light Source
    LED
  • CCT/Color
    2700K3000K3500K4000K
  • CRI
    80 90
  • Watt(Approx)
    64 W87 W
  • Lumens(Approx)
    6476 Lm8573 Lm
  • Optics
    DirectNarrowFlood
  • Adjustable
  • Dimming
    Dim to 1%0-10V
  • Controls/Network
  • Power/Voltage
    Integral120V277V
  • Integral Emergency
    EM Integral
  • Lumen Maintenance
    50000 h
  • Certificates
    CSAIBEW
  • Environment
    Wet
  • Mounting Type
    Ceiling RecessedDrywallT-Grid Ceiling
  • Housing
    New Construction
  • Housing Depth
    9 ''
 SKU configuration, design parameters and all files available for download shall always be verified with manufacturer. LightAZ is not responsible for any errors or omissions for product specified on our website. Refer to our TERMS of SERVICES for more information.
